Paneles solares

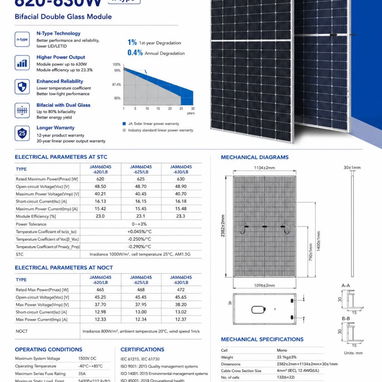

ELECTRICAL PARAMETERS AT STC
1% 1st-year Degradation
0.4% Annual Degradation
• JA Solar linear power warranty
• Industry standard linear power warranty

JAM66D45
JAM66D45
-625/LB
JAM66D45
-630/LB
Rated Maximum Power(Pmax) [W]
620
625
630
Open-circuit Voltage (Voc) M
48.50
48.70
48.90
Maximum Power Voltage(mp) M
40.21
40.45
40.70
Short-circuit Current(ls) (A)
16.13
16.15
16.18
Maximum Power Current(Imp) [A]
15.42
15.45
15.48
Module Efficiency (%]
23.0
23.1
23.3
Power Tolerance
0-+3%
Temperature Coefficient of Isca_Isc)
+0.045%/°C
Temperature Coefficient of Voc(B_Voc)
-0.250%/°C
Temperature Coefficient of Pmardy_Pmp)
-0.290%/°C
SIC
Irradiance 1000W/m*, cell temperature 25°C, AM1.5G
ELECTRICAL PARAMETERS AT NOCT
JAM66D45
-620/LB
Rated Max Power(Pmax) (W)
Open-circuit Voltage (Voc) M
Max Power Voltage (Vmp) M
Short-circuit Current(isc) [A]
Max Power Current(Imp) [A)
465
45.25
37.70
12.98
12
