Panel trinasolar

​Trinasolar

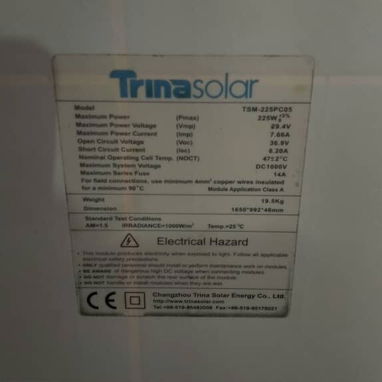

​Model: TSM-225PC05
​Maximum Power (Pmax): 225\text{W } 0 / +3\%
​Maximum Power Voltage (Vmp): 29.4\text{V}
​Maximum Power Current (Imp): 7.66\text{A}
​Open Circuit Voltage (Voc): 36.9\text{V}
​Short Circuit Current (Isc): 8.20\text{A}
​Nominal Operating Cell Temp. (NOCT): 47 \pm 2^{\circ}\text{C}
​Maximum System Voltage: \text{DC}1000\text{V}
​Maximum Series Fuse: 14\text{A}
​For field connections, use minimum 4\text{mm}^2 copper wires insulated for a minimum 90^{\circ}\text{C}
​Module Application Class A
​Weight: 19.5\text{Kg}
​Dimension: 1650 \times 992 \times 46\text{mm}
